Cisco SPA 514G

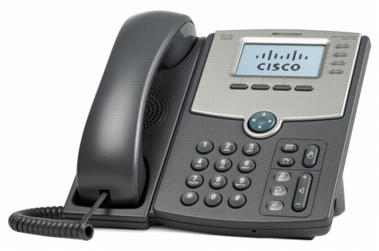

The Cisco ®SPA514G 4-Line IP Phone with 2-Port Gigabit Ethernet Switch provides advanced voice and data communications features small businesses need to stay productive and responsive. Based on Session Initiation Protocol (SIP), the Cisco SPA514G (Figure 1) has been tested to ensure complete interoperability with leading voice over IP (VoIP) equipment from voice over IP infrastructure leaders, enabling service providers to quickly roll out competitive, feature-rich services to their customers.

Manufacturer:

Cisco

Model:

SPA 514

Price:

$160

With hundreds of features and configurable service parameters, the Cisco SPA514G addresses the requirements of traditional business users while building on the advantages of IP telephony. Features such as easy station moves and shared line appearances (across local and geographically dispersed locations) are just some of the many advantages of the SPA514G.

Stylish and affordable, the Cisco SPA514G IP Phone can also be used with productivity-enhancing features such as VoiceView Express, and Cisco XML Applications when interfacing with Cisco Unified Communication 500 Series in SPCP Mode.

Secure and Easy to Manage
The Cisco SPA514G was designed to simplify installation, while providing enhanced security for complete peace of mind. It utilizes standard encryption protocols to perform secure remote provisioning and unobtrusive in-service software upgrades. Secure remote provisioning tools include detailed performance measurement and troubleshooting features, enabling network providers to deliver high-quality support to their subscribers. Remote provisioning also saves service providers the time and expense of managing, preloading, and reconfiguring customer premises equipment.

Features

Four voice lines
Backlit pixel-based display: 128 x 64 monochrome graphical liquid crystal display (LCD)
Line status: active line indication, name and number
Menu-driven user interface
Shared line appearance*
Speakerphone
Call hold
Music on hold*
Call waiting
Caller ID name and number
Outbound caller ID blocking
Call transfer: attended and blind
Three-way call conferencing with local mixing
Multiparty conferencing via external conference bridge
Automatic redial of last calling and last called numbers
On-hook dialing
Call pickup: selective and group*
Call park and unpark*
Call swap
Call back on busy
Call blocking: anonymous and selective
Call forwarding: unconditional, no answer, on busy
Hot line and warm line automatic calling
Call logs (60 entries each): made, answered, and missed calls
Redial from call logs
Personal directory with auto-dial (100 entries)
Do not disturb (callers hear line busy tone)
Digits dialed with number auto-completion
Anonymous caller blocking
Uniform Resource Identifier (URI) (IP) dialing support (vanity numbers)
On-hook default audio configuration (speakerphone and headset)
Multiple ring tones with selectable ring tone per line
Called number with directory name matching
Ability to call number using name: directory matching or via caller ID
Subsequent incoming calls show calling name and number
Date and time with support for intelligent daylight savings
Call duration and start time stored in call logs
Call timer
Name and identity (text) displayed at startup
Distinctive ringing based on calling and called number
12 user-customizable ring tones
Speed dialing, eight entries
Configurable dial/numbering plan support
Intercom*
Group paging
NAT Traversal, including STUN support
DNS SRV and multiple A records for proxy lookup and proxy redundancy
Debug, syslog, report generation, and event logging
Secure call encrypted voice communication support
Built-in web server for administration and configuration with multiple security levels
Automated remote secure provisioning via TFTP, HTTP or HTTPS
Option to require administrator password to reset unit to factory defaults

Specifications

# of RJ45 Ports	2
# of Lines	4
3 way conference	Yes
AC Power Supply Included	Yes
Backlit-LCD	Yes
Color Screen	No
Display Type	High-Resolution
PoE Support	Yes
